Transmodel diagram

TM RC Transport Organisation MODEL [OLD]

In package RC Transport Organisations MODELView on transmodel-cen.eu

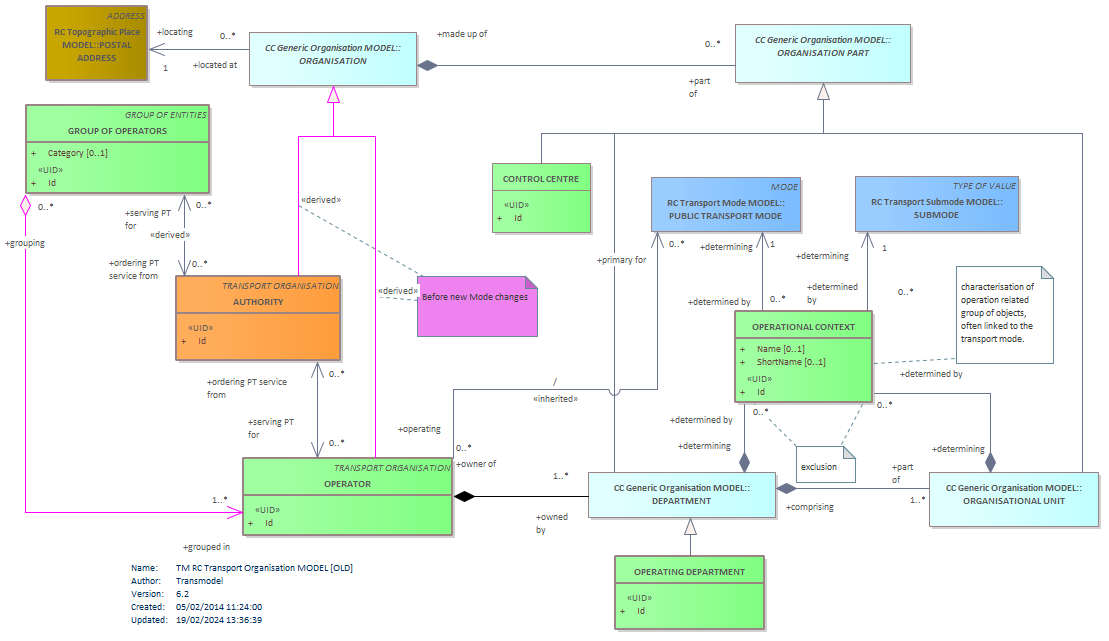

Diagram TM RC Transport Organisation MODEL [OLD] CONTROL CENTREPOSTAL ADDRESSPUBLIC TRANSPORT MODESUBMODEOPERATIONAL CONTEXTDEPARTMENTORGANISATIONAL UNITOPERATING DEPARTMENTORGANISATION PARTORGANISATIONAUTHORITYOPERATORGROUP OF OPERATORS

Classes on this diagram

AUTHORITY
CONTROL CENTRE
DEPARTMENT
GROUP OF OPERATORS
OPERATING DEPARTMENT
OPERATIONAL CONTEXT
OPERATOR
ORGANISATION abstract
ORGANISATION PART abstract
ORGANISATIONAL UNIT
POSTAL ADDRESS
PUBLIC TRANSPORT MODE
SUBMODE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
