Transmodel diagram

TM RM Administrative Organisation Role HIERARCHY [INFO]

In package RM Administrative Organisation Role MODELView on transmodel-cen.eu

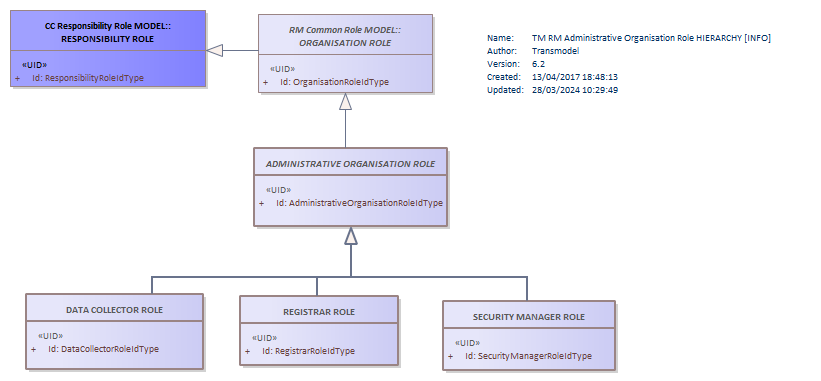

Diagram TM RM Administrative Organisation Role HIERARCHY [INFO] SECURITY MANAGER ROLEREGISTRAR ROLEADMINISTRATIVE ORGANISATION ROLEORGANISATION ROLEDATA COLLECTOR ROLERESPONSIBILITY ROLE

Classes on this diagram

ADMINISTRATIVE ORGANISATION ROLE abstract
DATA COLLECTOR ROLE
ORGANISATION ROLE abstract
REGISTRAR ROLE
RESPONSIBILITY ROLE
SECURITY MANAGER ROLE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
