Transmodel diagram

TM RM Service Organisation Role MODEL Basic [INFO]

In package RM Service Organisation Role MODELView on transmodel-cen.eu

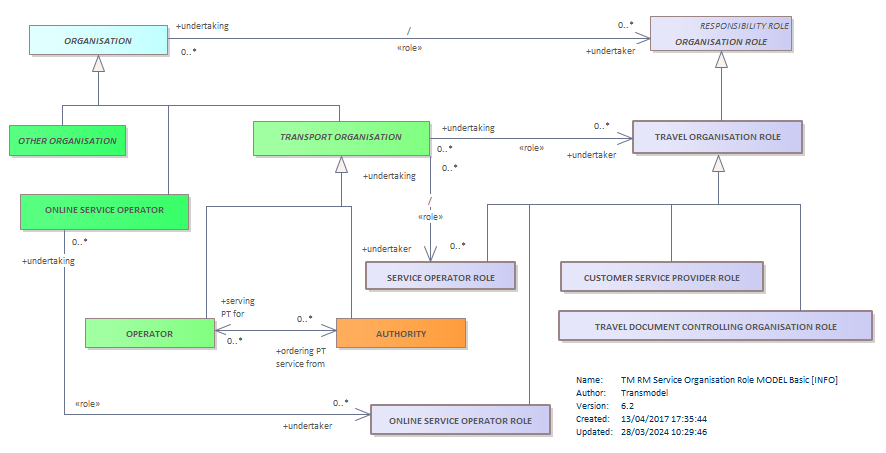

Diagram TM RM Service Organisation Role MODEL Basic [INFO] ONLINE SERVICE OPERATOR ROLEONLINE SERVICE OPERATORTRANSPORT ORGANISATIONTRAVEL ORGANISATION ROLEAUTHORITYOPERATOROTHER ORGANISATIONORGANISATION ROLECUSTOMER SERVICE PROVIDER ROLESERVICE OPERATOR ROLETRAVEL DOCUMENT CONTROLLING ORGANISATION ROLEORGANISATION

Classes on this diagram

AUTHORITY
CUSTOMER SERVICE PROVIDER ROLE
ONLINE SERVICE OPERATOR
ONLINE SERVICE OPERATOR ROLE
OPERATOR
ORGANISATION abstract
ORGANISATION ROLE abstract
OTHER ORGANISATION abstract
SERVICE OPERATOR ROLE
TRANSPORT ORGANISATION abstract
TRAVEL DOCUMENT CONTROLLING ORGANISATION ROLE
TRAVEL ORGANISATION ROLE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
